MCert User Guide

This guide covers every page in MCert: how to scan your servers and workstations and network devices and reach every layer of cryptography they use. That runs from the network down to the filesystem layer.

Key concepts

Four ideas come up on nearly every page in MCert. Learn these first and the rest of the product reads itself.

PQC status

Every cryptographic finding lands in one of four buckets. Each one is shown as a coloured pill wherever it appears:

Migration priority

Every finding also gets a priority score from 0 to 100. That tells you what to fix first. Critical is 90 and above. High is 70 to 89. Medium is 40 to 69. Low is under 40.

Scan lenses

Every scan job looks at a host from two angles. It merges what it finds and removes duplicates:

• Network (outside-in): a port scan that probes exposed services for TLS certificates and cipher suites and protocol versions. No credential needed.
• Deep scan (inside-out): a full crypto-asset scan run from inside the host. It runs either by an installed agent or over SSH or by the network-device scanner for tagged devices.

Scan profiles

First-time setup

Open the Manage Server in a browser on a fresh install and a three-step wizard launches. You cannot reach any other page until it finishes.

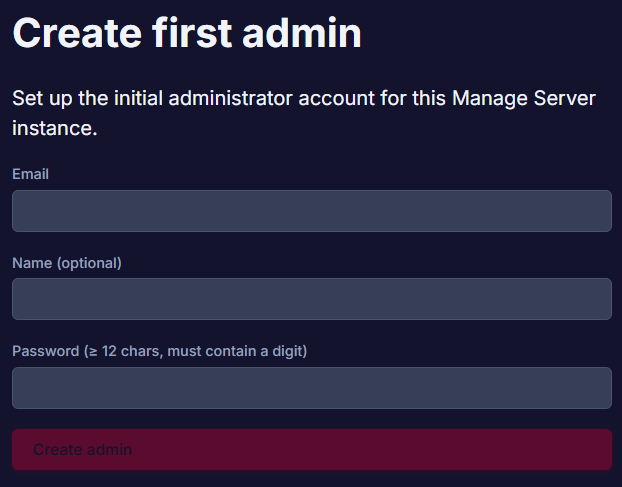

Step 1: create the first administrator

Press Create admin to continue.

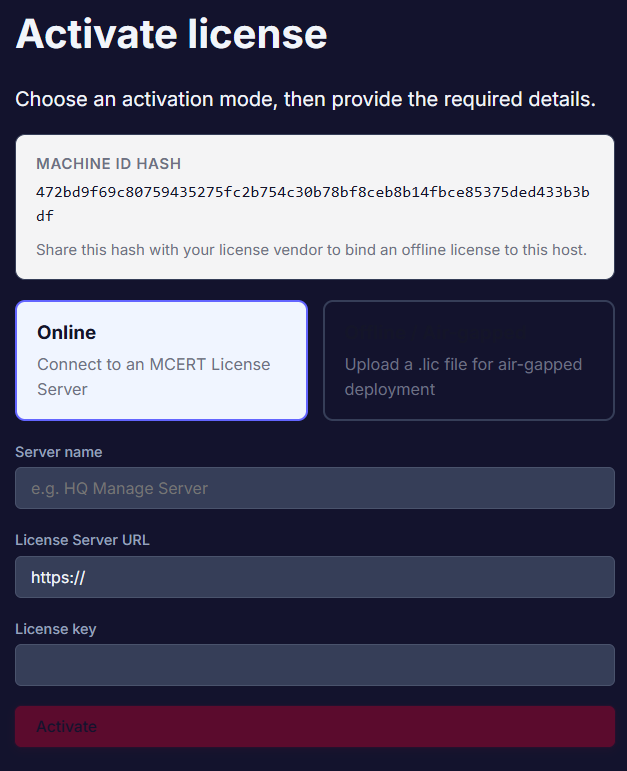

Step 2: activate the license

A Machine ID Hash appears at the top. Send this to your vendor if you need an offline air-gapped license bound to this specific machine. Otherwise choose how to activate:

• Online (default): fill in the Server name and the License Server URL (for example https://activation.mcert.tech) and the License key. Then press Activate.
• Upload a .lic file: for air-gapped deployments upload the offline license file your vendor gave you.

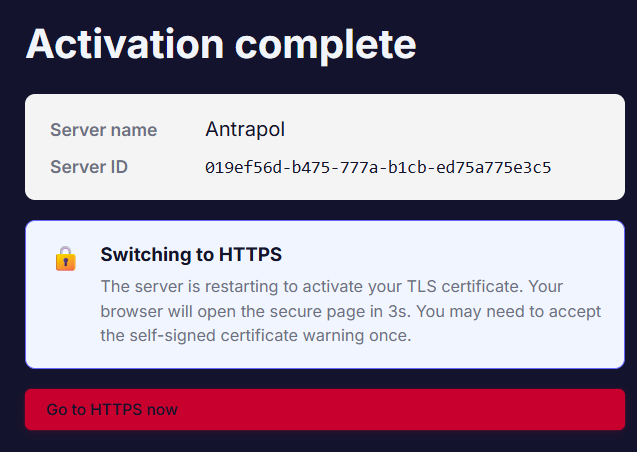

Step 3: activation complete

The server confirms its Server name and assigns a Server ID and restarts to switch on HTTPS with a self-signed certificate. Click Go to HTTPS now and accept the browser's certificate warning once.

Signing in and the layout

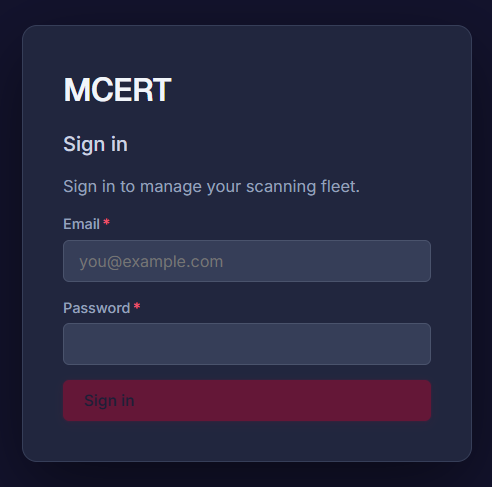

Sign in

Enter your email and password and press Sign in. Sessions last 24 hours by default. Five failed attempts in a row temporarily locks the account (see Administration).

The persistent layout

The left sidebar carries the MCert logo and a system-health pill (Ready or Checking with a refresh button) and the grouped navigation: Dashboard · Inventory · Planning · Operations · Reports · Admin. Its footer shows the signed-in user and the version and who built it.

The top bar shows a breadcrumb on the left and these controls on the right:

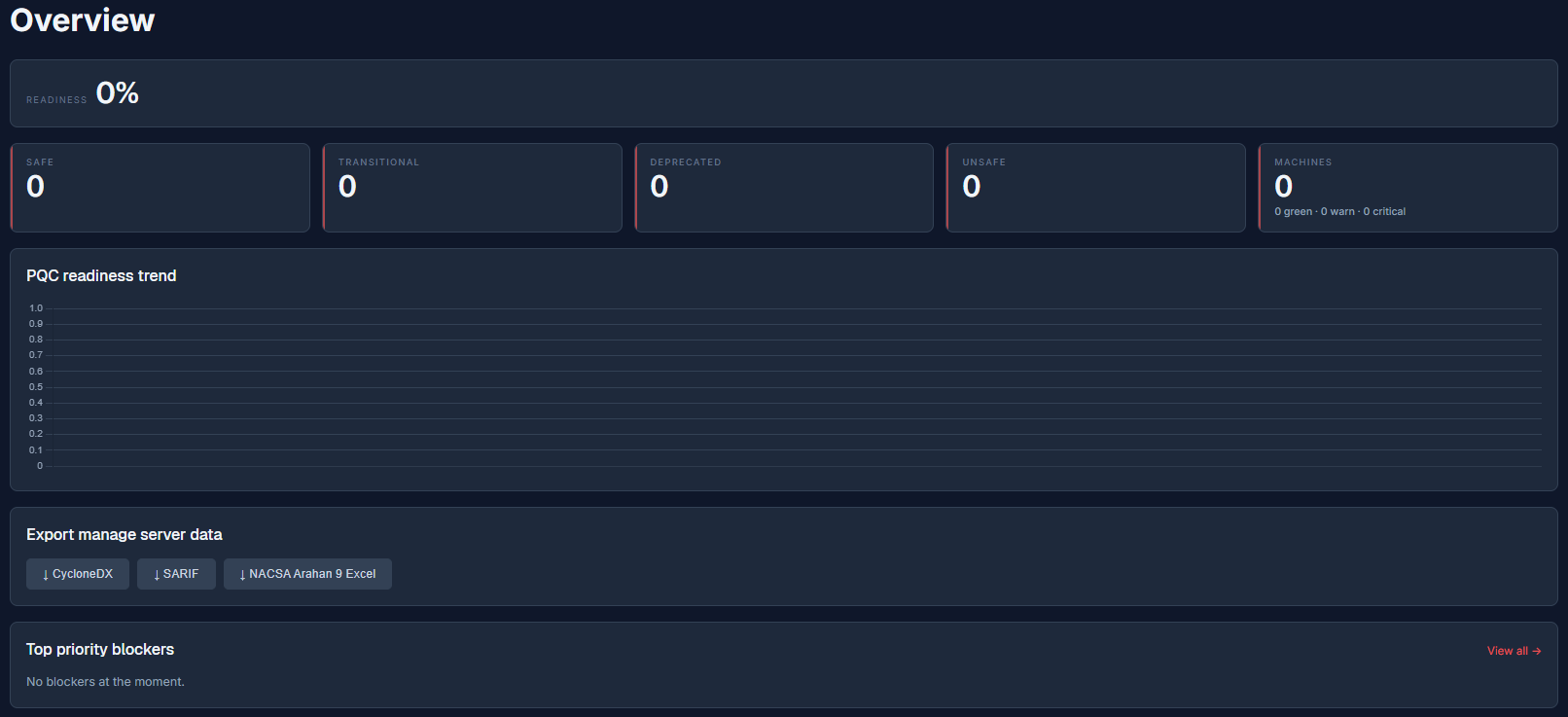

Dashboard

Sidebar ▸ Dashboard. The page you land on after signing in that summarises your whole fleet.

• Readiness is the headline percentage of your inventory that is already SAFE.
• Stat cards break that down into SAFE · TRANSITIONAL · DEPRECATED and UNSAFE counts plus a MACHINES card with a green/warn/critical split.
• PQC readiness trend charts readiness over time.
• Export manage server data gives one-click downloads of everything: CycloneDX · SARIF and the NACSA Arahan 9 Excel workbook.
• Top priority blockers lists your highest-scoring problems; View all opens the Priority report.

Inventory: Tags

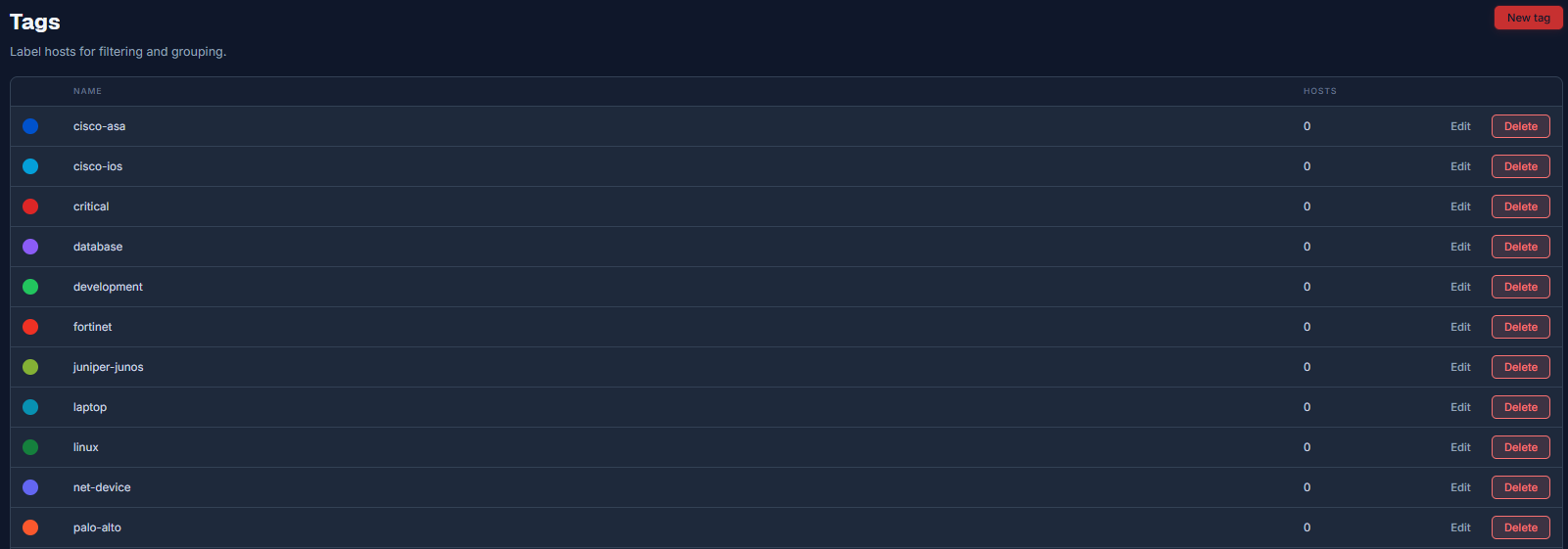

Sidebar ▸ Inventory ▸ Tags. Tags are coloured labels you attach to hosts so you can filter and scan them as a group.

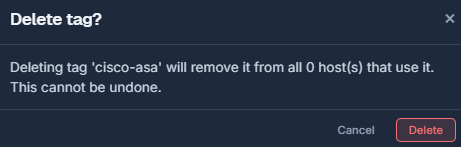

Each row shows a tag's colour dot and name and host count with Edit and Delete actions. The pre-seeded set covers linux · windows · server · workstation · production · staging · development · critical · database · web · net-device · pqc-scope and a handful of network-vendor tags such as cisco-asa and fortinet.

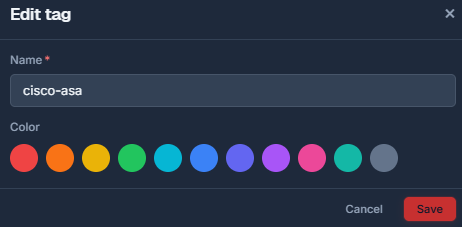

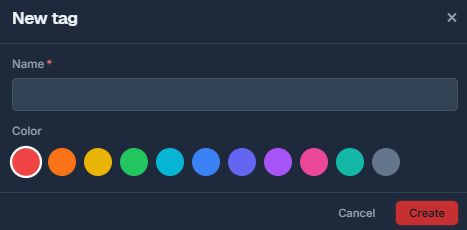

New tag opens an editor: a name (stored lower-case) and a colour from 12 preset swatches. Press Create or Save when editing.

Inventory: Hosts

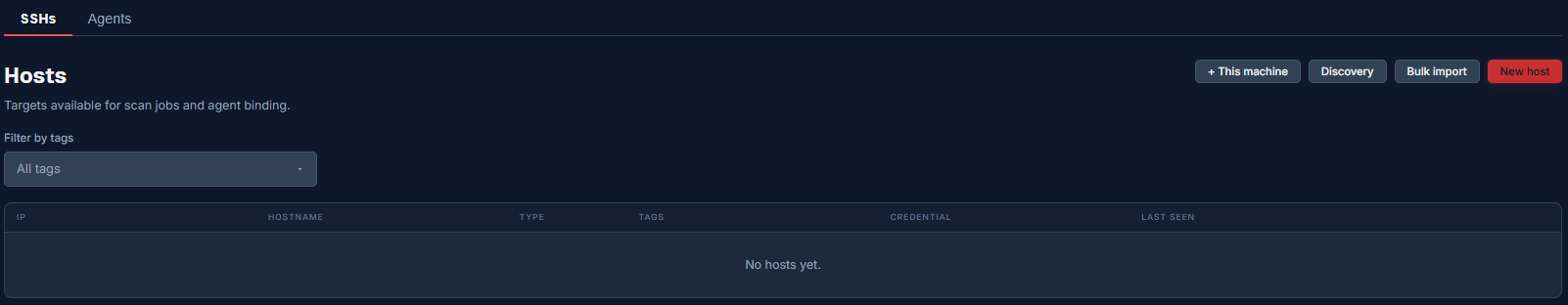

Sidebar ▸ Inventory ▸ Hosts. The targets available to scan jobs and agent binding are split across two tabs: SSHs (hosts scanned over SSH or the network scanner) and Agents (hosts running an installed agent).

There are four ways to add a host:

This machine

Registers the Manage Server's own host as a scan target in one click.

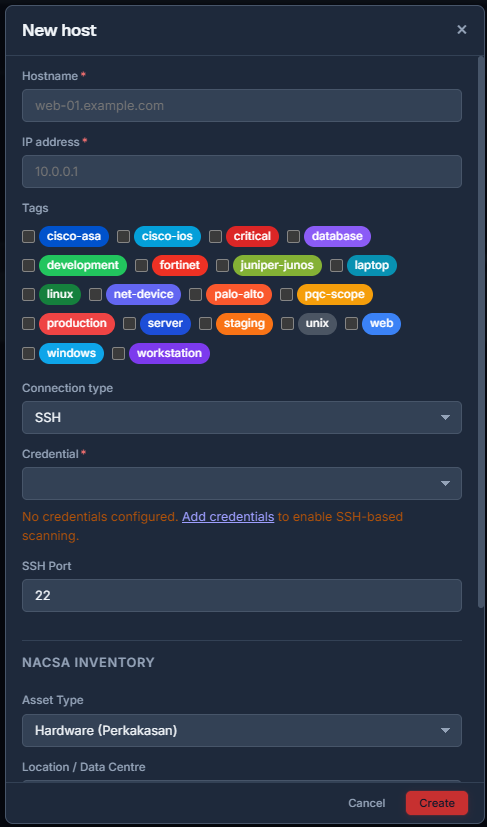

New host

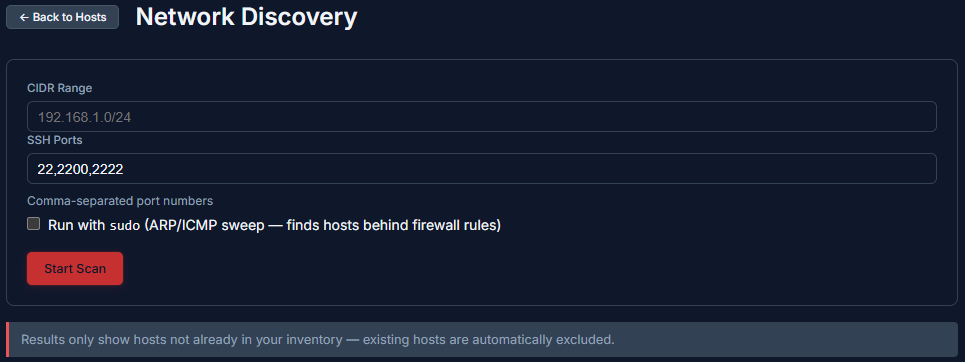

Discovery (network scan)

Enter a CIDR range (for example 192.168.1.0/24) and SSH ports to probe (default 22,2200,2222) and optionally run with sudo for an ARP/ICMP sweep that also finds hosts hidden behind firewall rules. Press Start Scan. Results list only hosts not already in inventory. Tick the ones you want and adjust each hostname if needed. Then Import Selected.

Bulk import

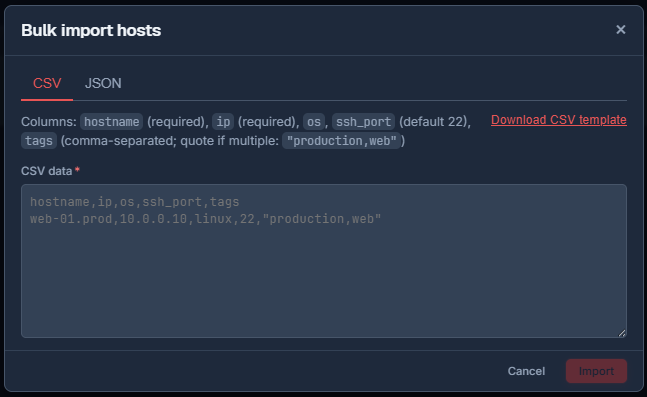

The CSV tab accepts columns hostname (required) and ip (required) and os and ssh_port (default 22) and tags (comma-separated and quoted when there is more than one). A Download CSV template link and a live preview validate every row as you go.

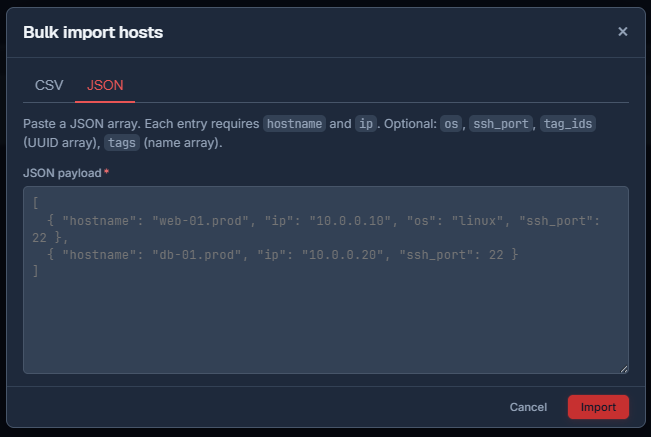

The JSON tab takes an array of host objects. Each needs hostname and ip with optional os and ssh_port and either tags (names) or tag_ids (UUIDs).

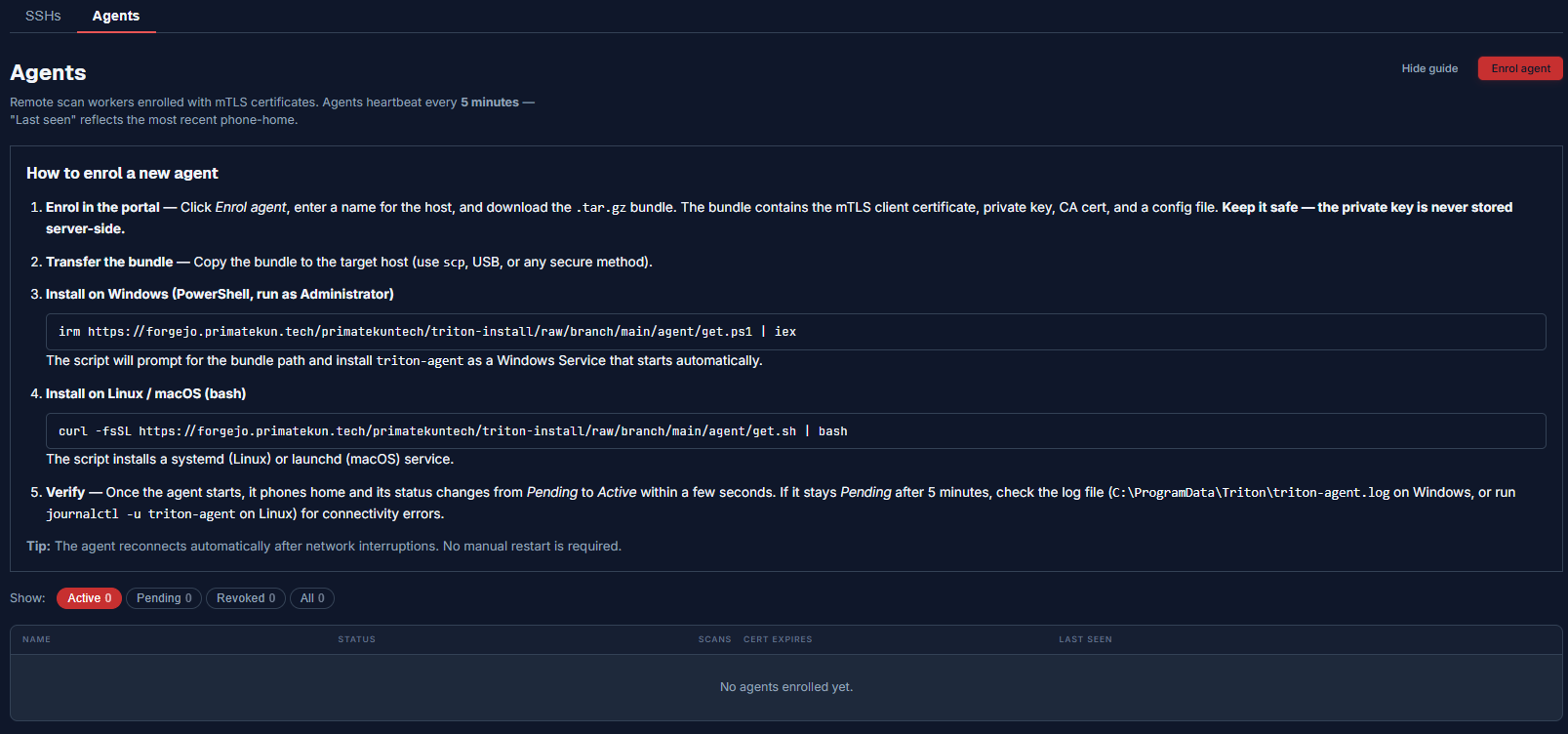

Agents: remote scan workers

Agents heartbeat every 5 minutes. Last seen reflects the most recent one. They work best where SSH is not allowed or where you want continuous scheduled self-scanning.

After you press Enrol and download an installation guide gives a copy-paste one-line installer per platform. On Linux for example:

curl -fsSL https://forgejo.primatekun.tech/primatekuntech/triton-install/raw/branch/main/agent/get.sh \
  | sudo bash -s -- --bundle ./<bundle>.tar.gz

The installer sets up the triton-agent daemon and the triton scanner. It registers a service (systemd or launchd or Windows Service) and authenticates with mutual TLS. On Linux confirm it with systemctl status triton-agent. The agent then appears in the Agents table and starts on every reboot.

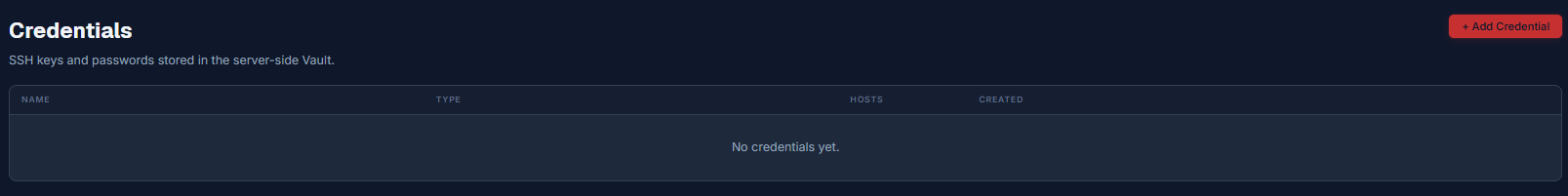

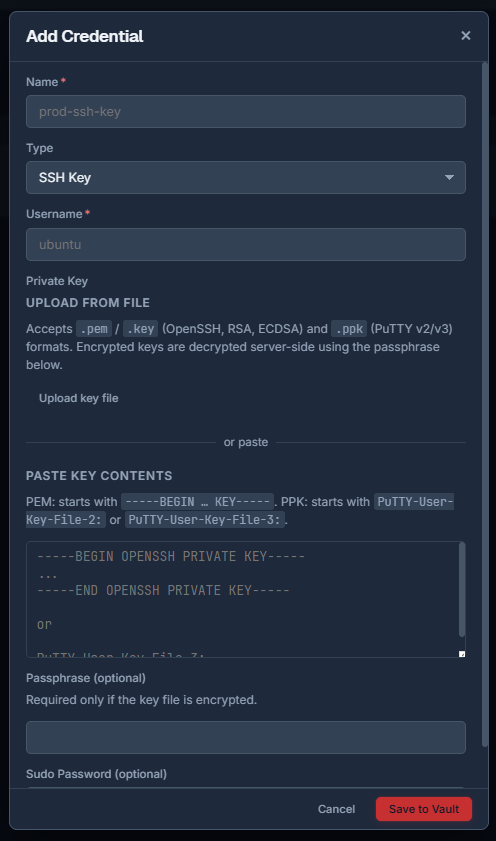

Inventory: Credentials

Sidebar ▸ Inventory ▸ Credentials. SSH keys and passwords encrypted at rest with AES-256-GCM in a server-side vault.

Press Save to Vault. Editing a credential lets you rotate the username and private key via Update Vault Secret.

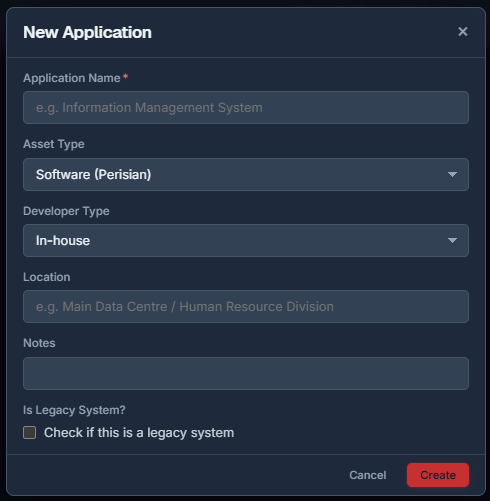

Inventory: Applications

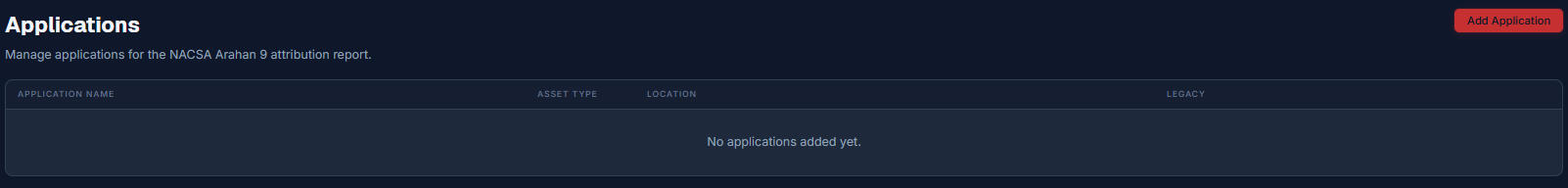

Sidebar ▸ Inventory ▸ Applications. Applications attribute crypto findings to a named business system for the NACSA Arahan 9 attribution report.

Press Create. The Components button on each row opens a modal where you map the application's individual software components. That feeds the SBOM and attribution views.

Planning: Phases

Planning is where a scan's findings become a costed and dated migration programme. Phases records when each NACSA stage happens; Budget (next) records what it costs. Both flow straight into the NACSA Arahan 9 export. An assessor then sees your timeline and your ringgit figures alongside your findings.

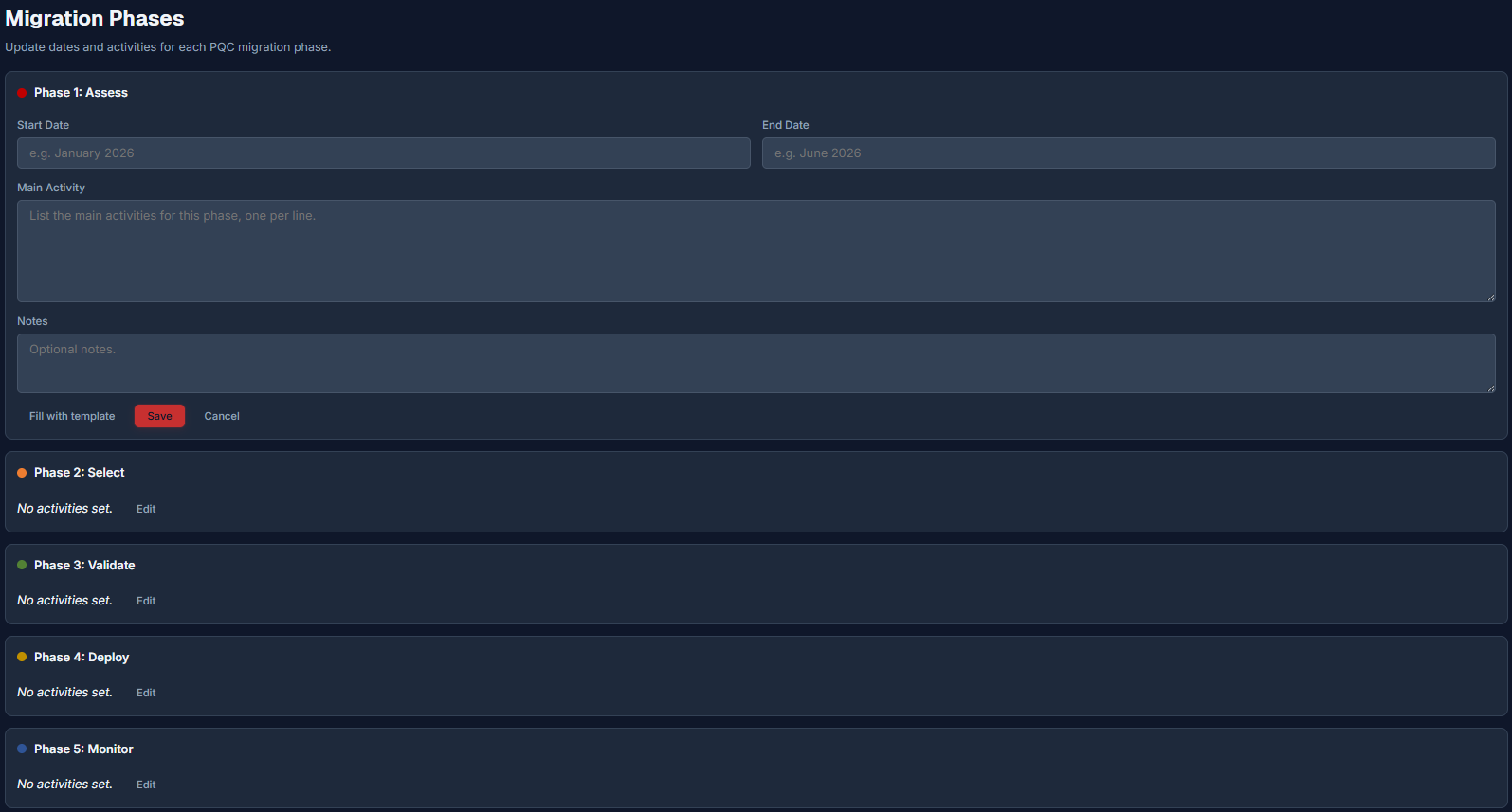

Sidebar ▸ Planning ▸ Phases. The five standard NACSA migration phases (Fasa). Each has its own colour and an Edit action for dates and activities.

Each phase's edit form has a Start Date · End Date · Main Activity (one line per activity) · Notes and a Fill with template button that drops in NACSA's standard activity list for that phase. Progress against these phases shows up on the NACSA report's Migration tab.

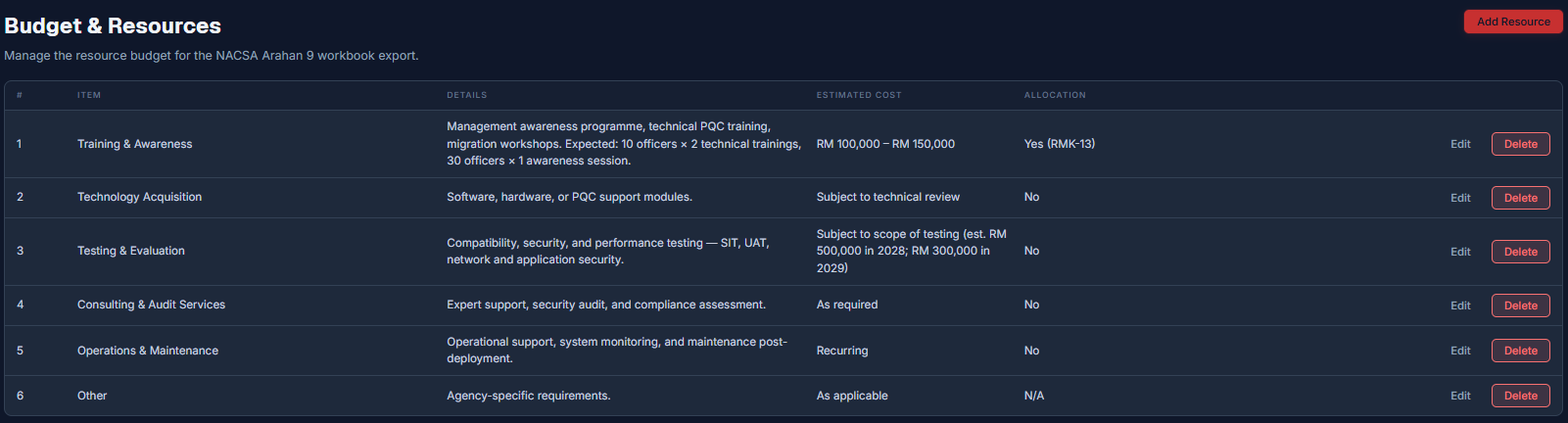

Planning: Budget

Sidebar ▸ Planning ▸ Budget. The resource budget behind the NACSA Arahan 9 export.

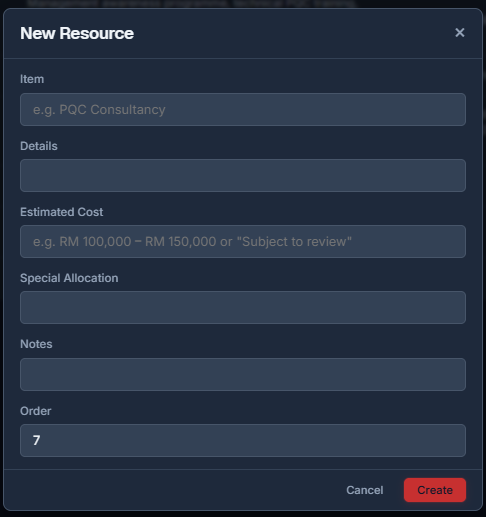

The table is a costed resource list: item number · item · details · estimated cost and allocation with Edit and Delete per row. It ships pre-seeded with Training & Awareness · Technology Acquisition · Testing & Evaluation · Consulting & Audit Services · Operations & Maintenance and Other.

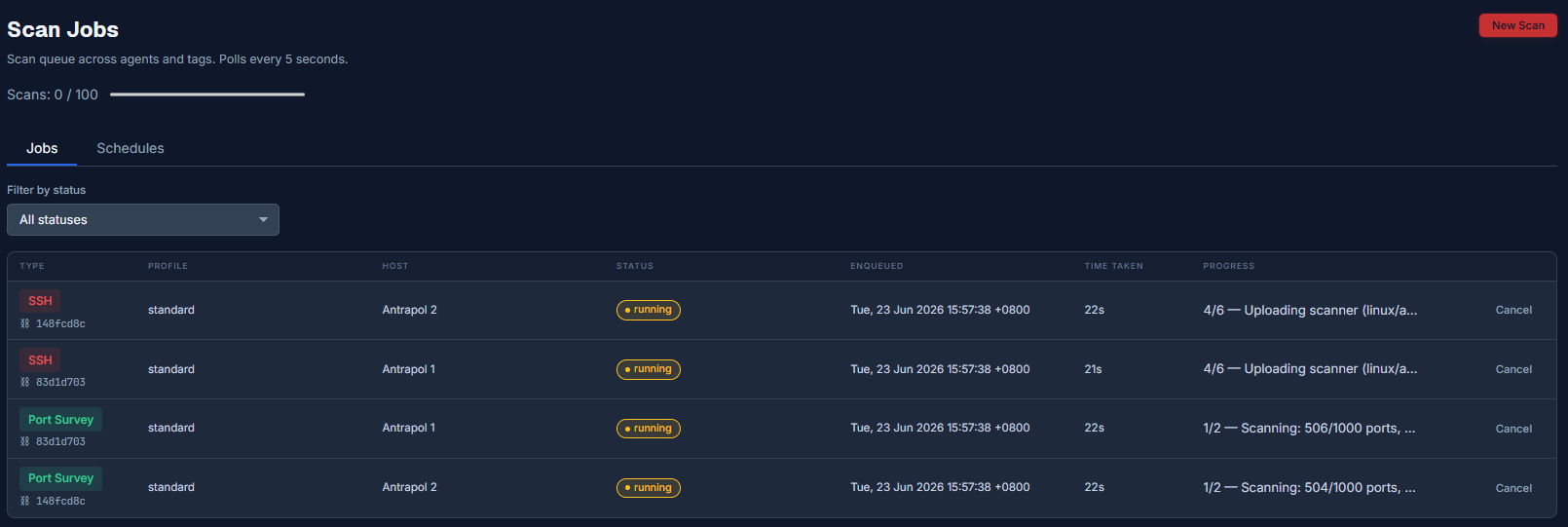

Operations: Scan Jobs

Sidebar ▸ Operations ▸ Scan Jobs. The scan queue across agents and tags polls every 5 seconds. This is the operation itself: each scan job runs the Network and/or Deep lens against the hosts and credentials you set up in Inventory. Its results populate every report below.

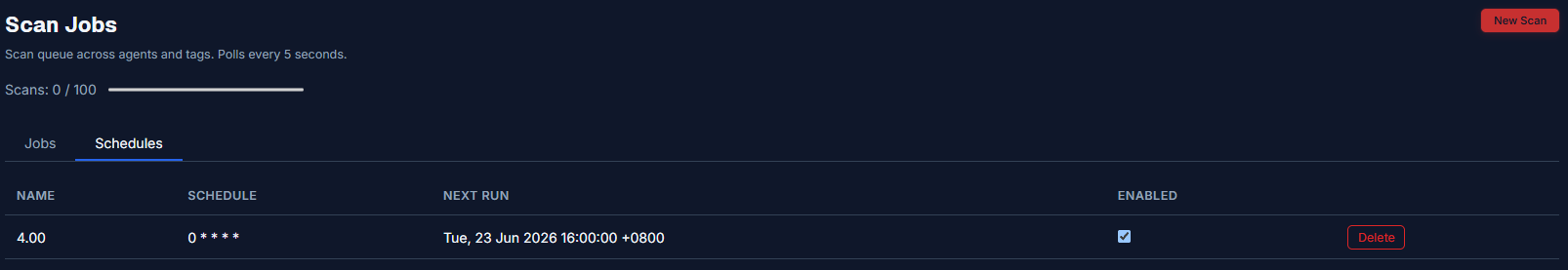

Two tabs. Jobs is the live queue. It has a scans-used license meter and a status filter and columns for type · profile · host · status · enqueued time · time taken and progress with a Cancel action on running or queued jobs. Type is either Port Survey (the network lens) or SSH / agent (the deep lens). Status moves from queued to running to completed or failed or cancelled. Progress shows live stage text such as "4/6, Uploading scanner".

Creating a scan: the New Scan wizard

New Scan opens a six-step wizard. The left rail tracks your progress through it.

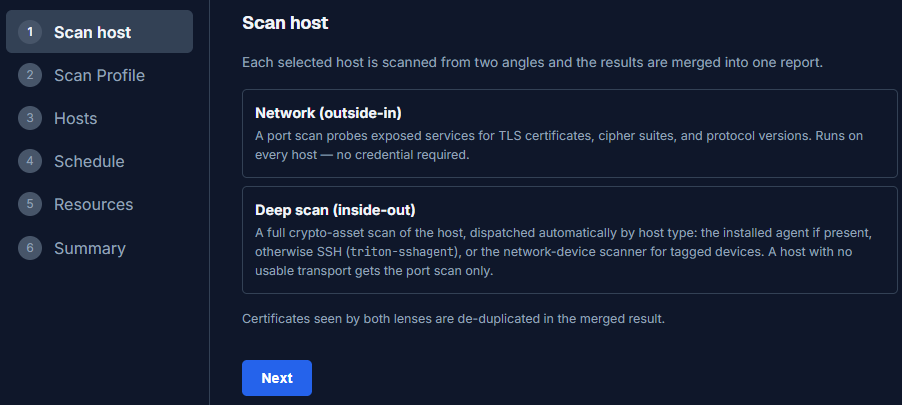

Step 1: Scan host. Explains the Network (outside-in) and Deep (inside-out) lenses that always run and merge. Press Next.

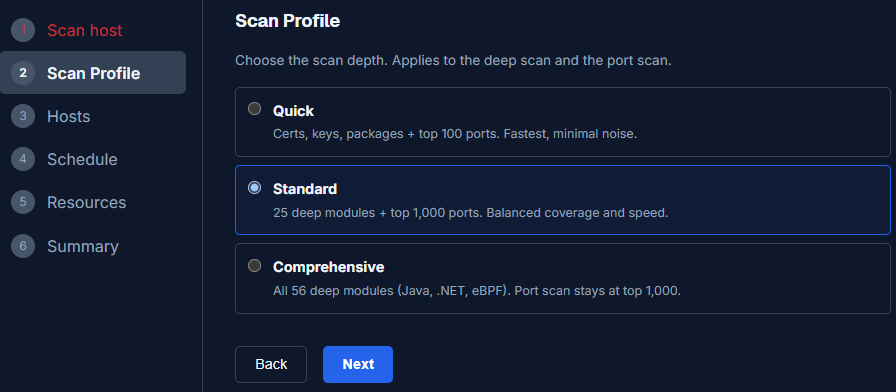

Step 2: Scan Profile. Choose Quick · Standard or Comprehensive. Standard is the default.

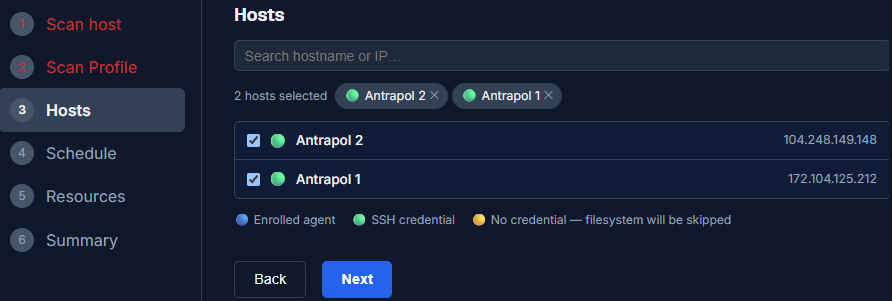

Step 3: Hosts. Tick the host or hosts to scan. A legend shows each host's readiness: blue means an enrolled agent · green means an SSH credential is on file · amber means no credential (the filesystem pass gets skipped). A search box filters by hostname or IP.

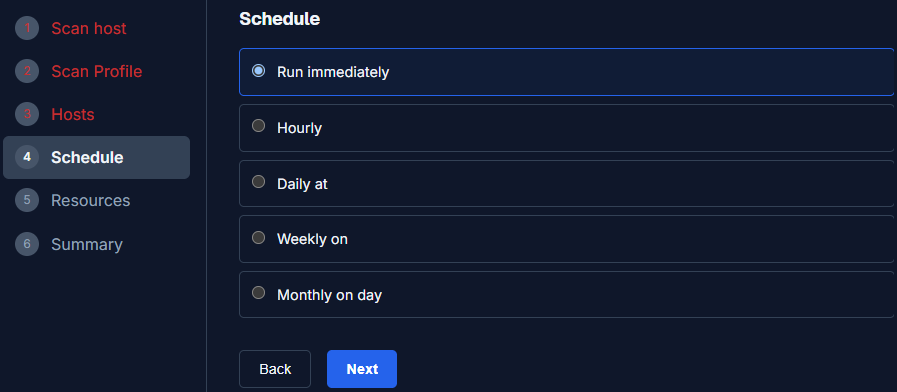

Step 4: Schedule. Run immediately (the default) · Hourly · Daily at a set time · Weekly on a chosen day or Monthly on a chosen day. Anything other than immediately creates an entry on the Schedules tab.

Step 5: Resource Limits. Optional caps enforced in-process on the target with no root needed: a CPU limit that throttles · a memory limit that a watchdog kills at 1.5 times the cap and a max duration that cancels the scan when the wall clock runs out. Leave these Unlimited unless you are scanning a sensitive production box.

Step 6: Summary. Review your choices. The wizard creates one Port Survey job plus one deep job per host. Press Enqueue N jobs.

Scan job detail

Click any job row to open its detail page: status · the exact command that ran · host · profile · worker · timestamps and a live activity log walking through the six SSH stages: connecting · detecting platform · fetching the scanner binary · uploading it · scanning remotely and submitting results. Failed jobs show the full error here (see Troubleshooting).

The report pages let you drill from a summary down to the individual finding. Most can be exported. Everything from here on is built from completed scan jobs. This is where raw findings become the CBOM · SBOM · priority list and NACSA Arahan 9 workbook you actually hand to auditors or management or NACSA.

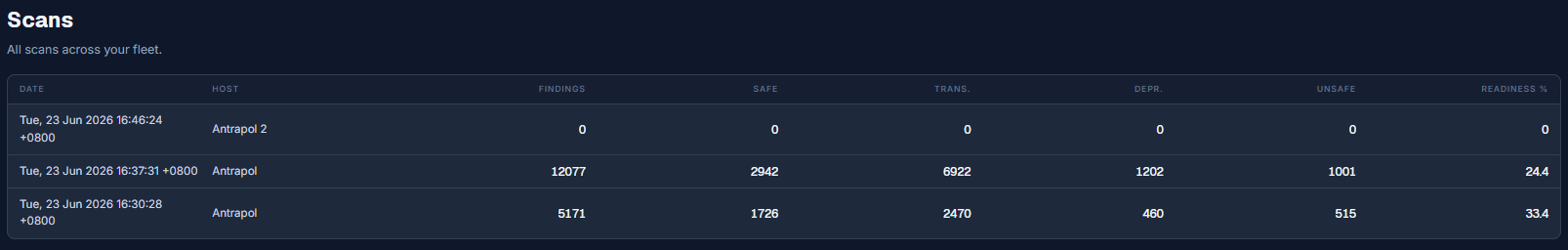

Reports: Scans

Sidebar ▸ Reports ▸ Scans. Every scan across your fleet as a history table: date · host · findings and a breakdown by status.

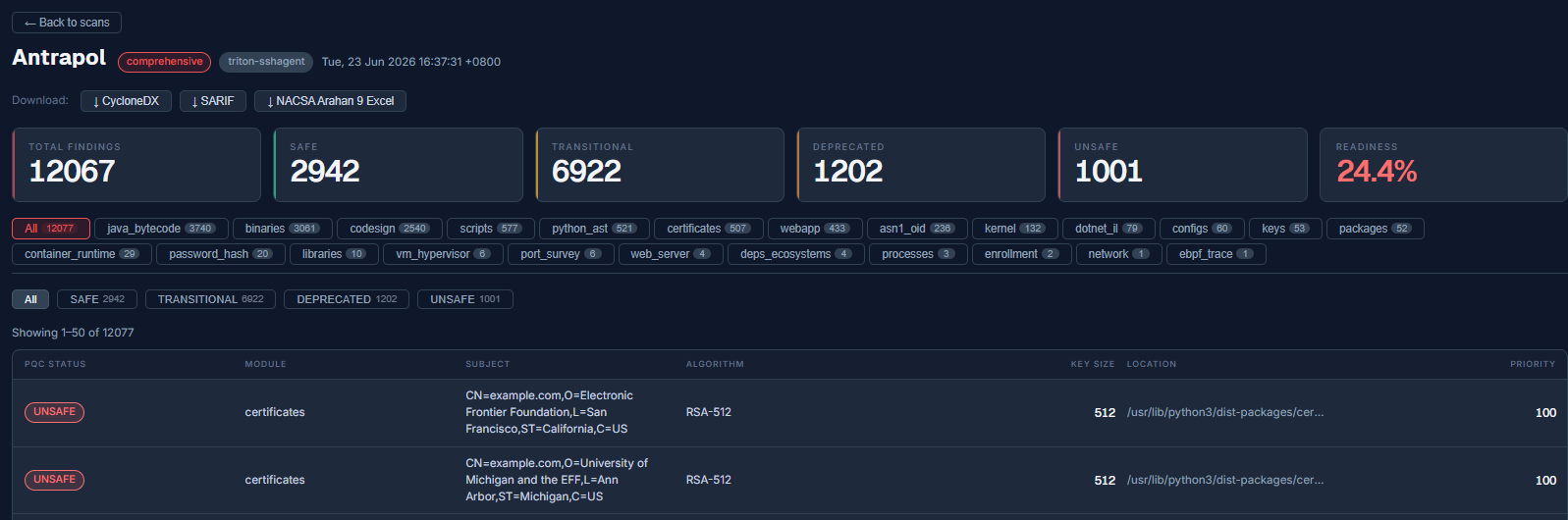

Click a row for the scan detail: host · profile · scan source · download buttons for CycloneDX · SARIF and NACSA Excel · headline stat cards and two filter rows. One filters by module (binaries · python_ast · scripts · webapp · certificates · packages · configs · keys · libraries and more) and one filters by PQC status. The findings table lists PQC status · module · subject · algorithm · key size · location and priority. For example: UNSAFE · binaries · MD5 · /usr/bin/curl · priority 100.

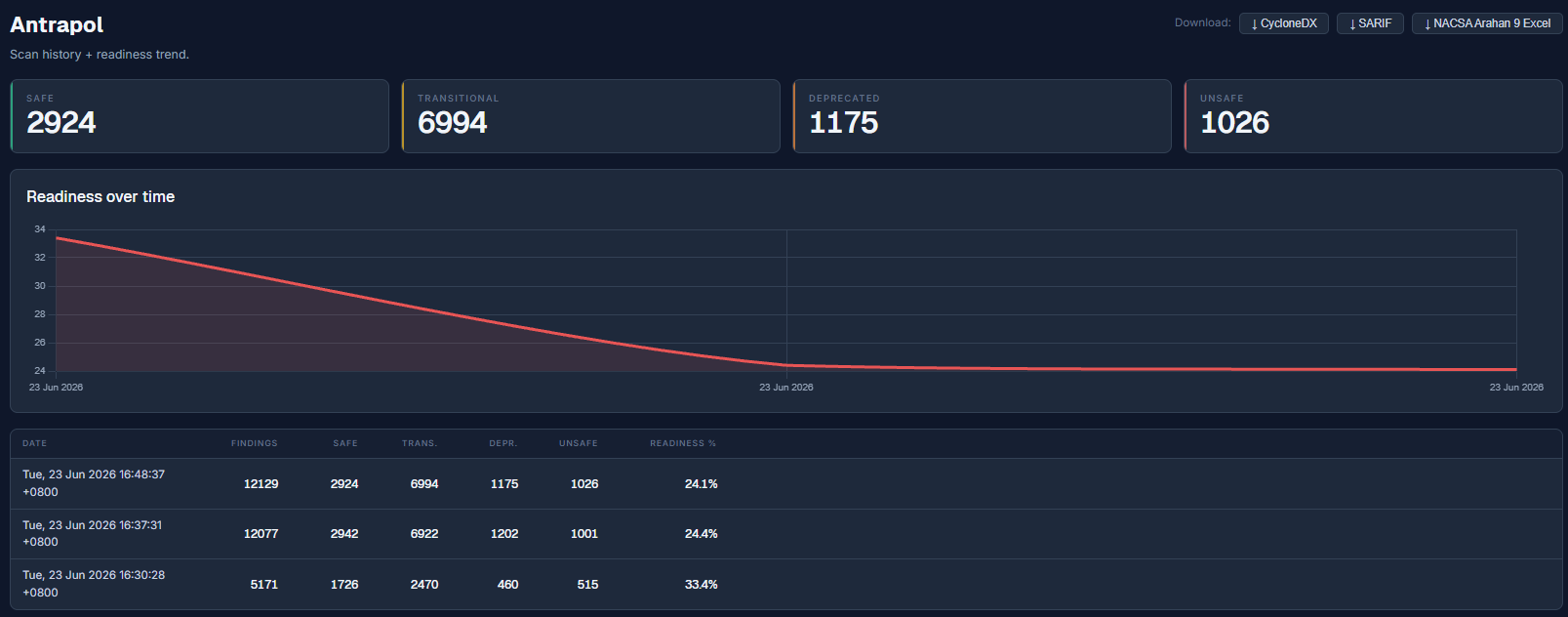

Reports: Hosts

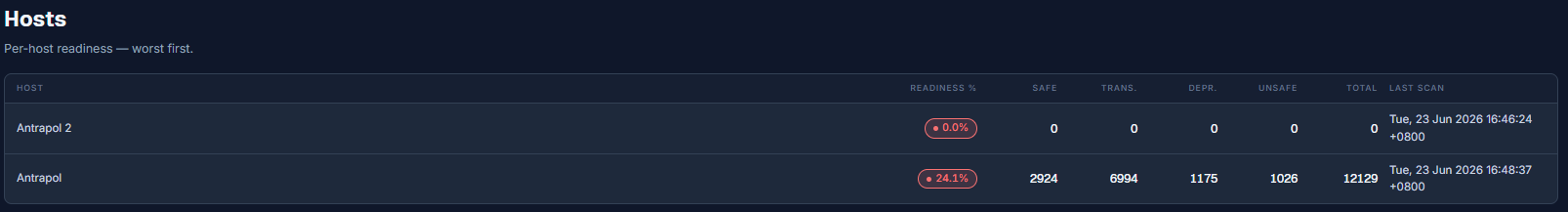

Sidebar ▸ Reports ▸ Hosts. Every machine ranked by readiness worst first.

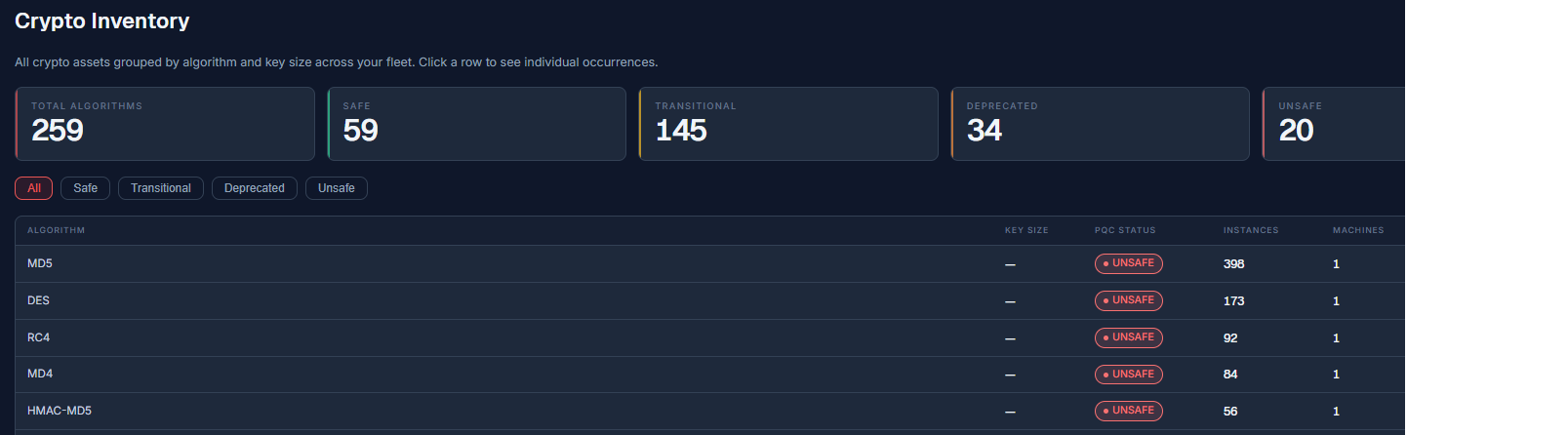

Reports: Inventory

Sidebar ▸ Reports ▸ Inventory. Every crypto asset across your fleet grouped by algorithm and key size.

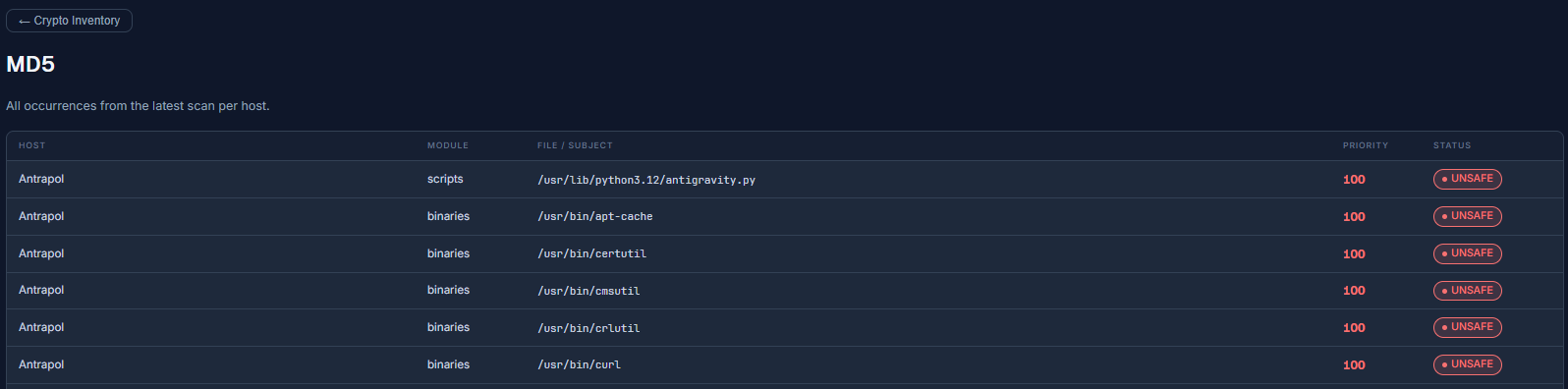

The table lists algorithm · key size · PQC status · instance count · machine count and max priority. For example: MD5 · UNSAFE · 166 instances · 1 machine · priority 100. Click any algorithm to see every occurrence:

Reports: Certificates

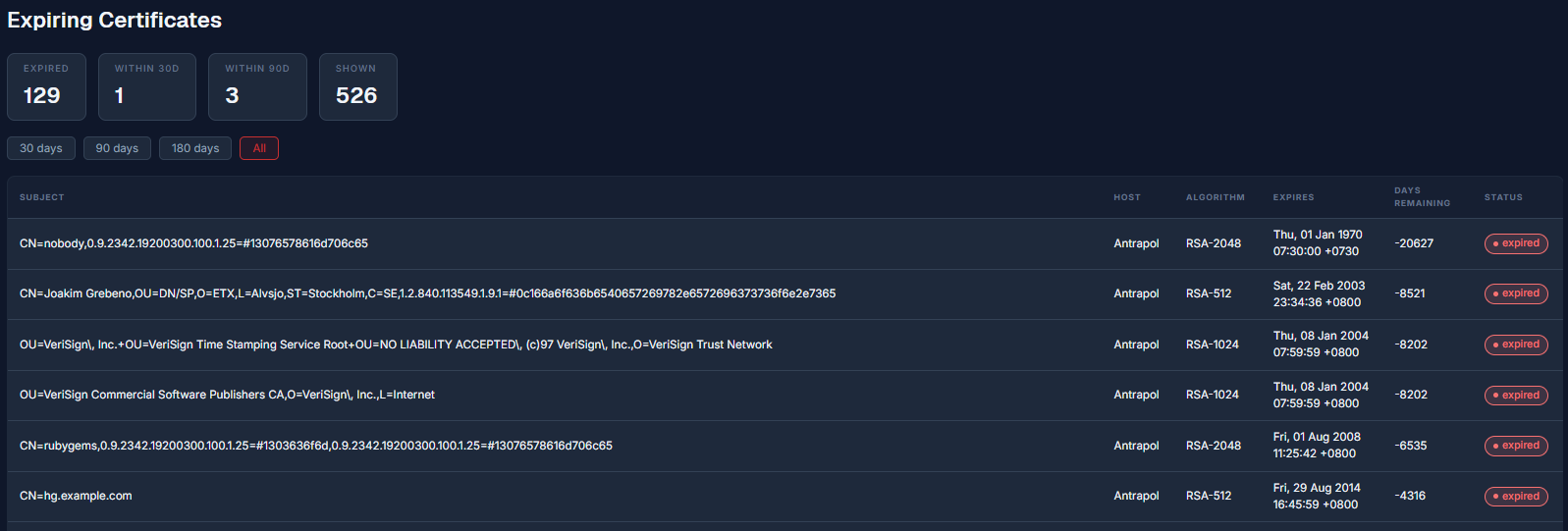

Sidebar ▸ Reports ▸ Certificates. Expiring certificates: cards for Expired · Within 30 days · Within 90 days and Shown with range chips for 30 · 90 · 180 days or All.

Reports: Priority

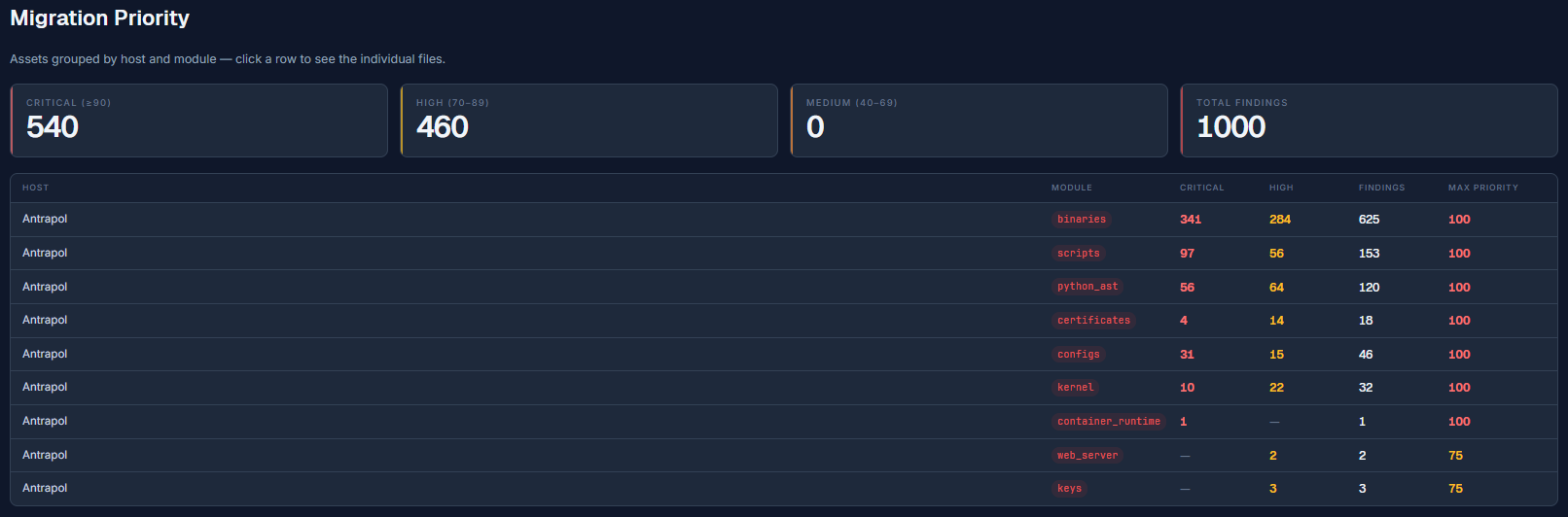

Sidebar ▸ Reports ▸ Priority. Assets grouped by host and module so you can attack the biggest problem areas first. Cards show Critical (90 and above) · High (70 to 89) · Medium (40 to 69) and total findings.

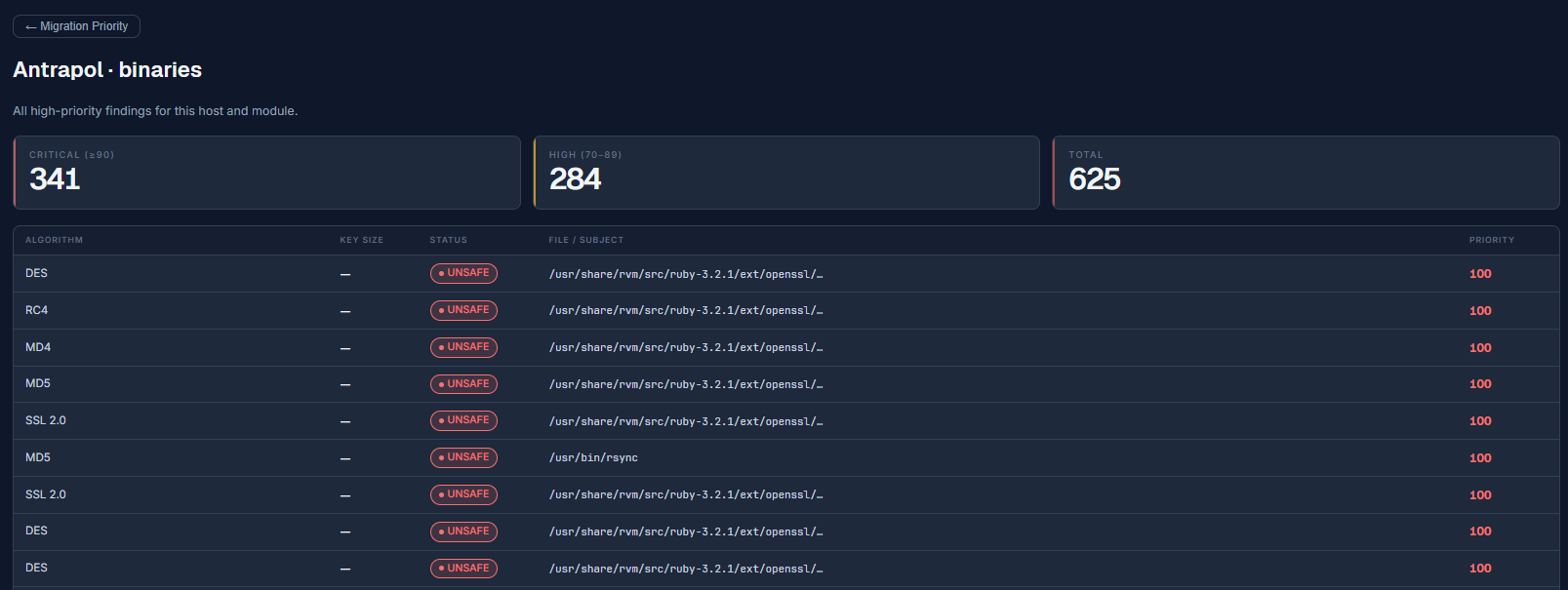

Click a row to list the individual files or assets behind it:

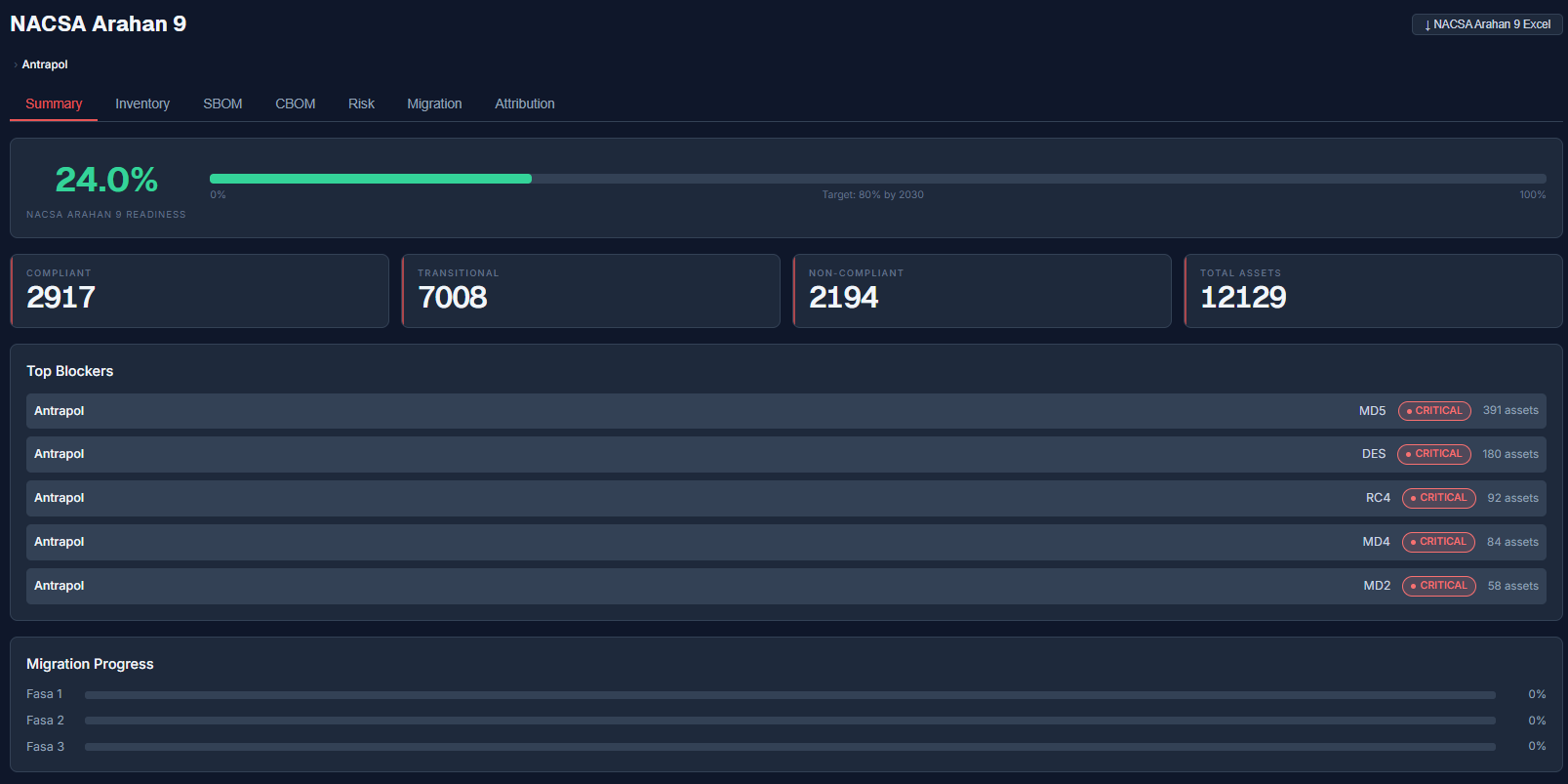

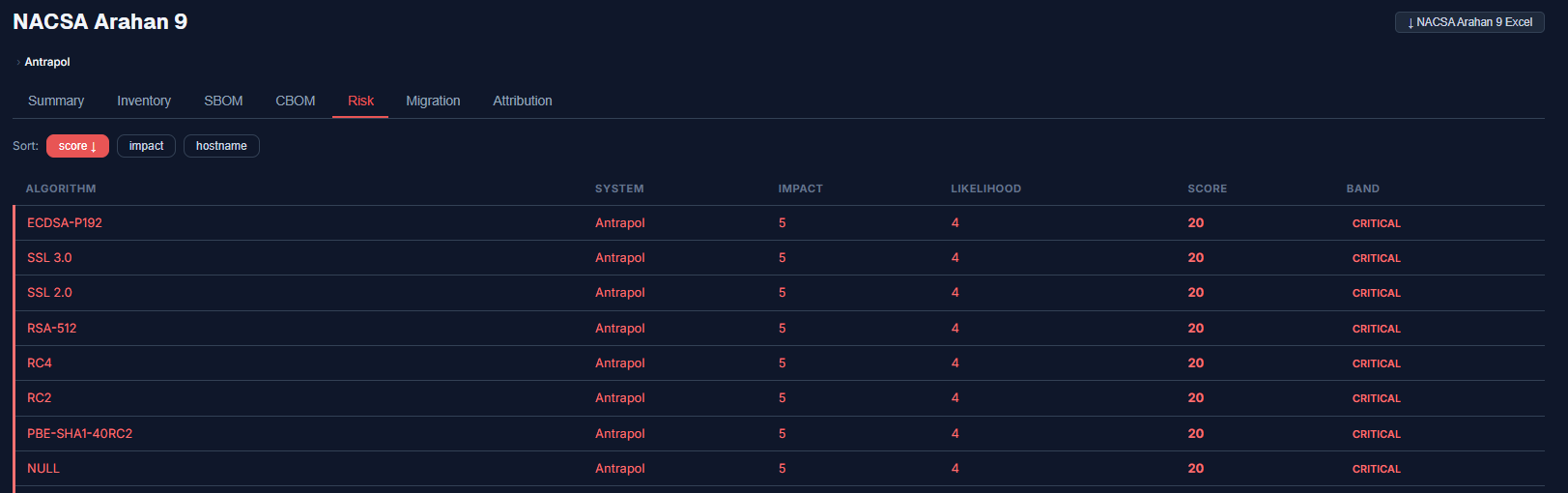

Reports: NACSA Arahan 9

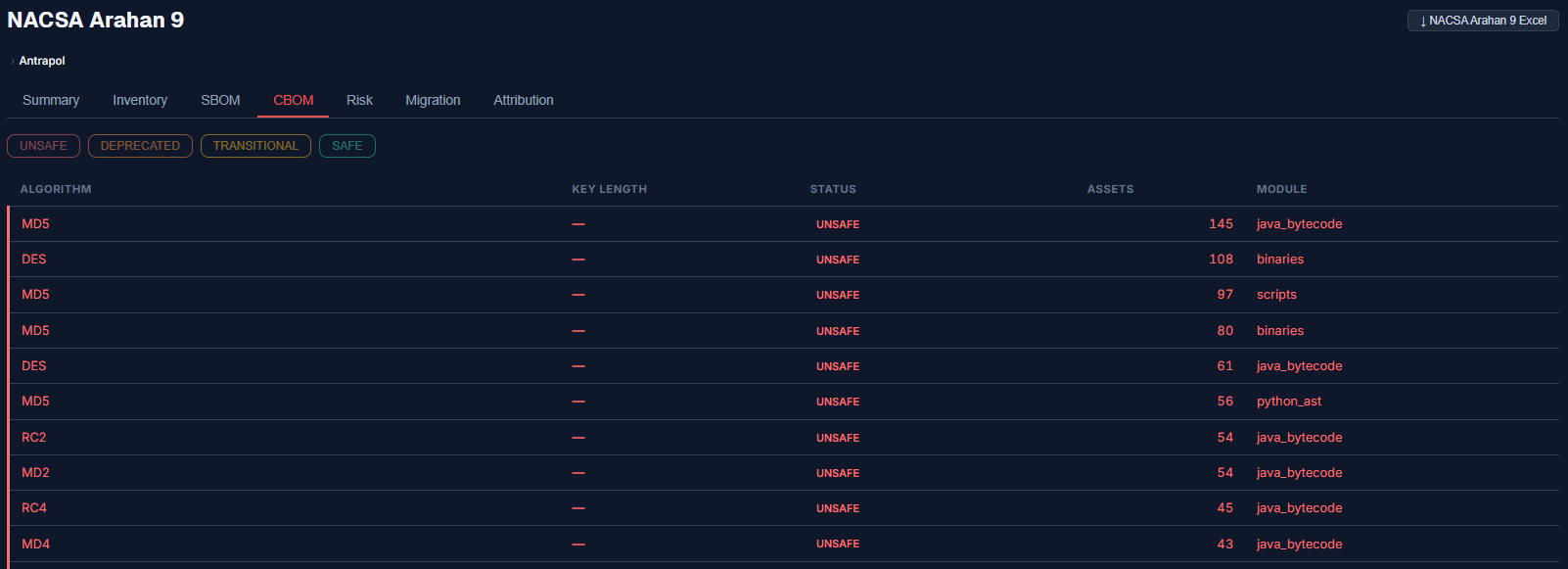

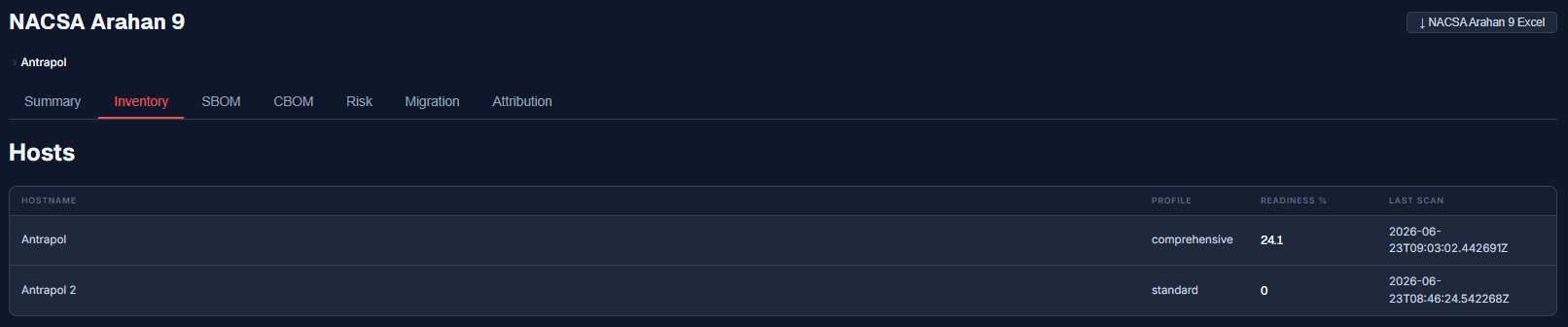

Sidebar ▸ Reports ▸ NACSA Arahan 9. The flagship compliance report. The ↓ NACSA Arahan 9 Excel button exports the full government workbook. An "All Servers" selector focuses the per-host views. Seven tabs:

The remaining two tabs are Migration and Attribution. Migration tracks progress against the five phases from Planning. Attribution maps findings to the Applications you registered and their owners.

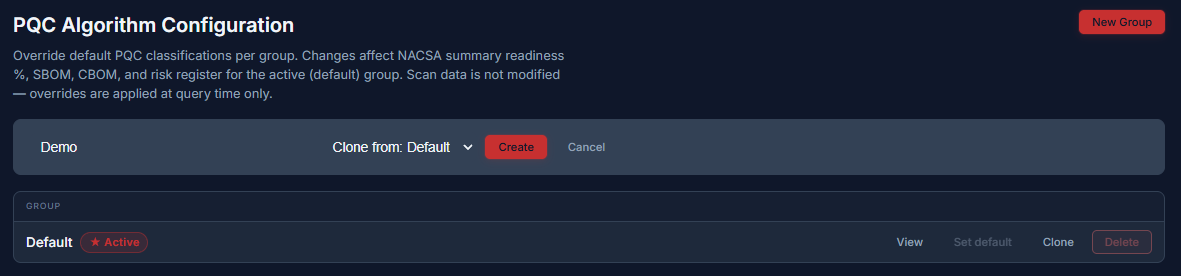

Reports: PQC Config

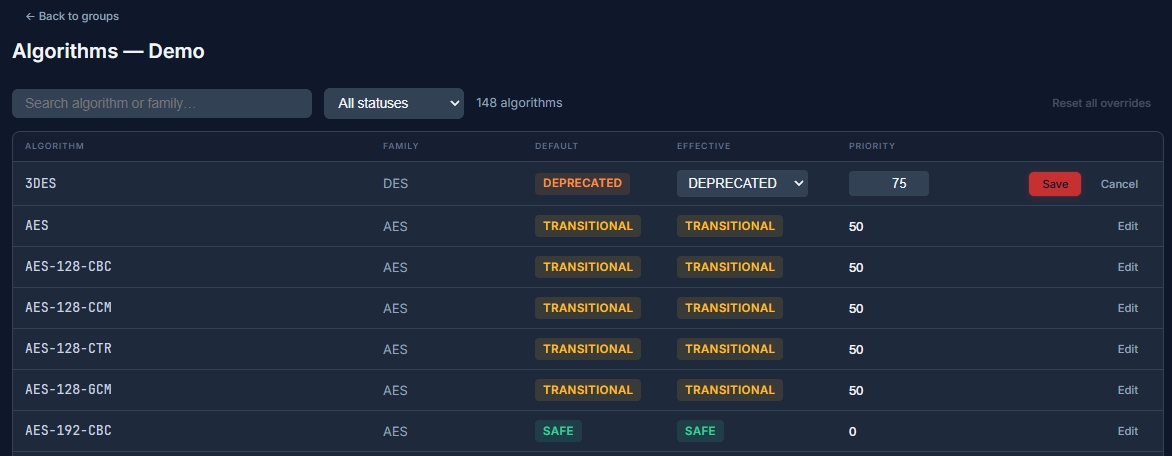

Sidebar ▸ Reports ▸ PQC Config. Override how algorithms are classified per group. Changes affect the NACSA summary readiness percentage · SBOM · CBOM and risk register for the active group. Scan data itself is never modified: overrides apply at query time only.

Administration: Users and Security

Users

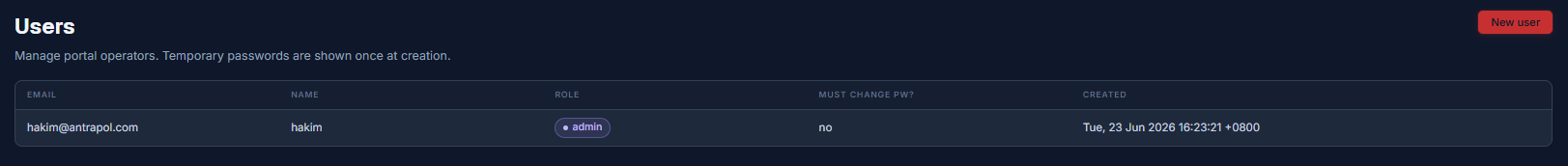

Sidebar ▸ Admin ▸ Users. Manage portal operators. Temporary passwords are shown once at creation.

New user takes an email and name and role. On creation a temporary password is shown once: copy it for the user since they must change it at first login.

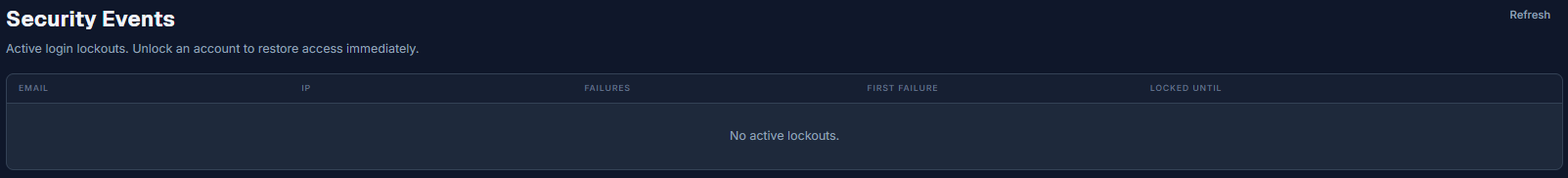

Security

Sidebar ▸ Admin ▸ Security. Active login lockouts. Unlocking an account restores access immediately.

Administration: Audit Log and License

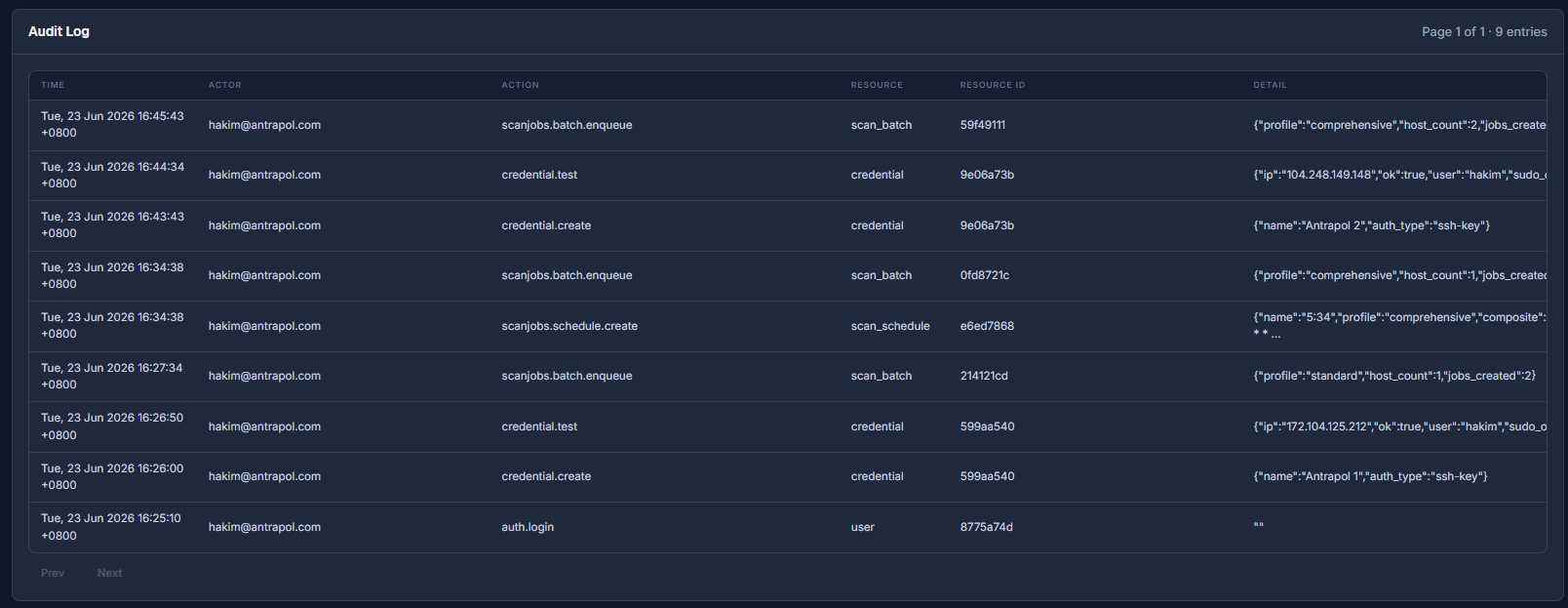

Audit Log

Sidebar ▸ Admin ▸ Audit Log. A tamper-evident record of every significant action.

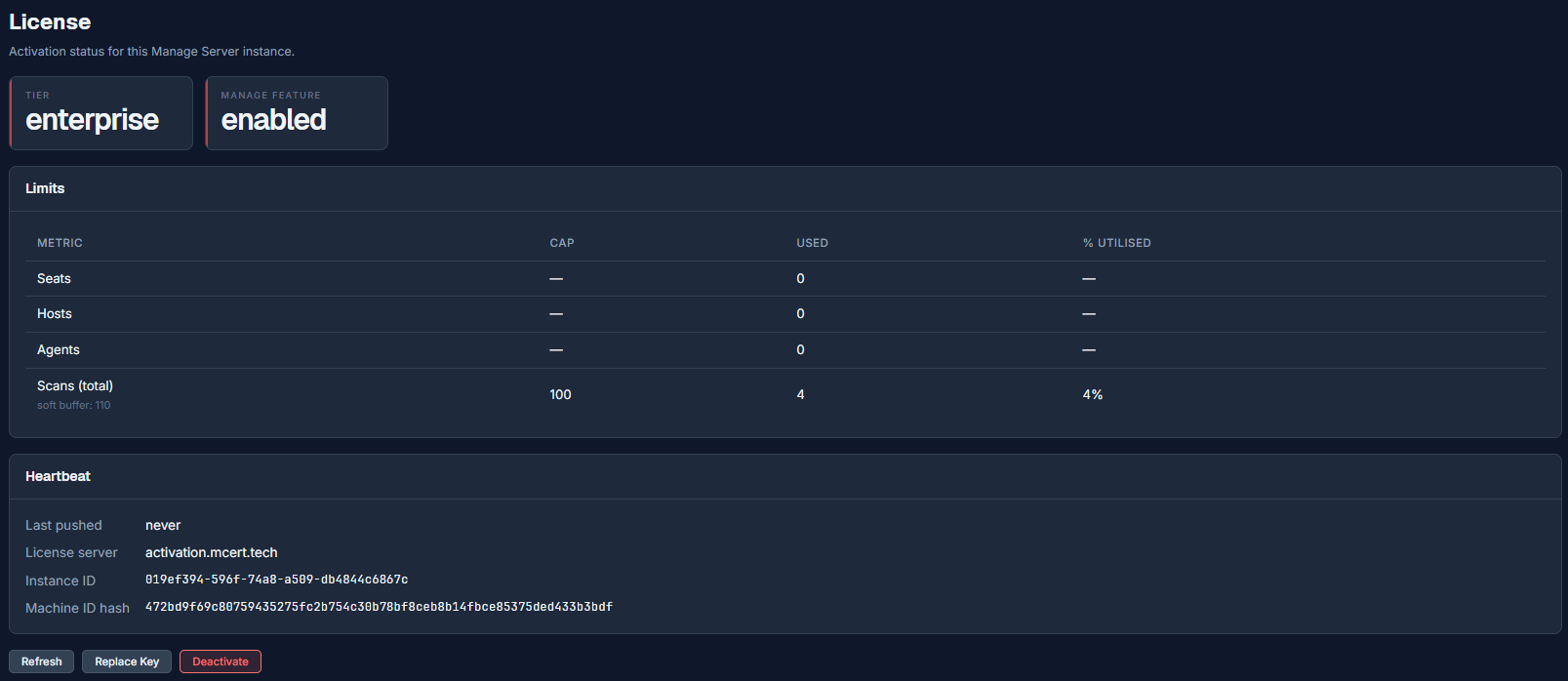

License

Sidebar ▸ Admin ▸ License. Activation status for this Manage Server instance.

• Tier (for example enterprise) and whether the Manage feature is enabled.
• Limits: seats · hosts · agents and total scans each with a cap · used count and utilisation percentage.
• Heartbeat: last pushed time · license server · instance ID · machine ID hash.
• Buttons: Refresh (re-validate now) · Replace Key (enter a new key) · Deactivate (release this activation).

Administration: Binaries and Settings

Binaries

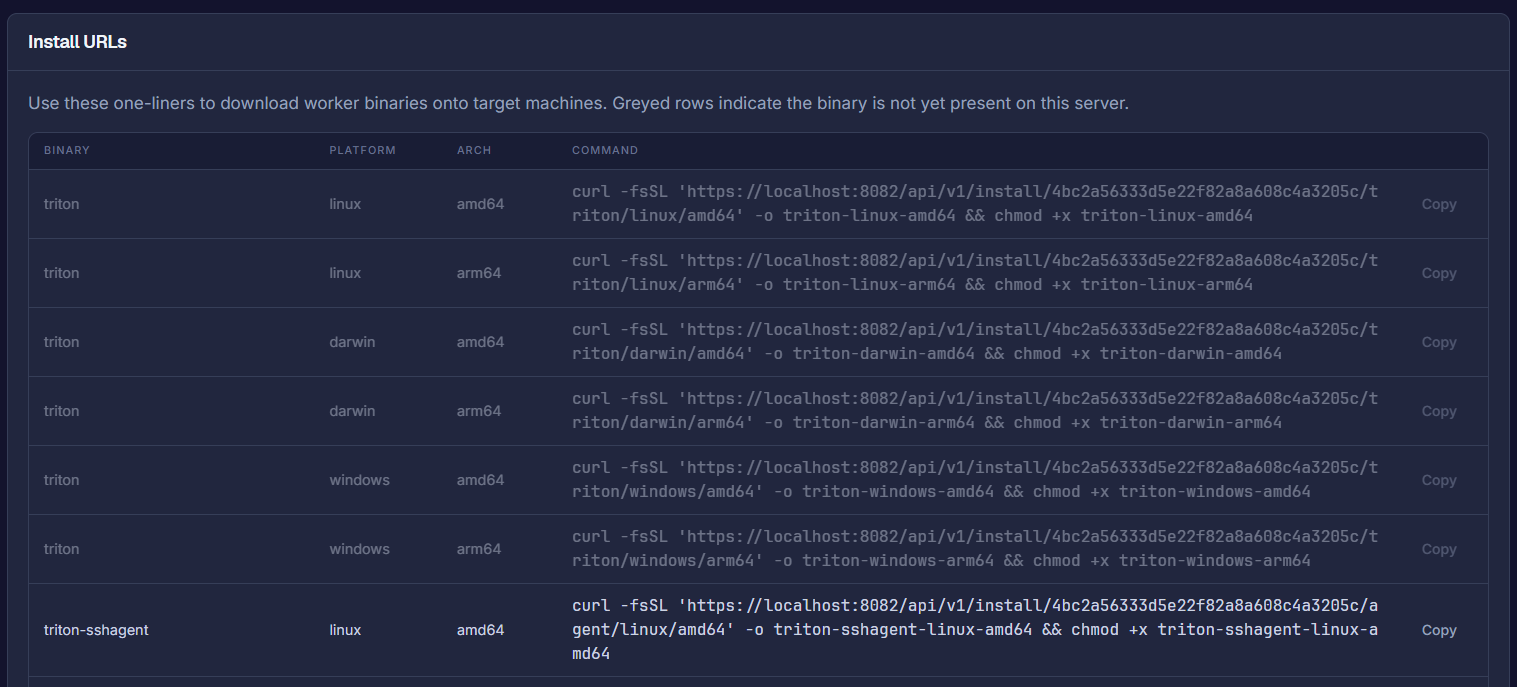

Sidebar ▸ Admin ▸ Binaries. The Manage Server distributes small worker binaries to agents and SSH targets.

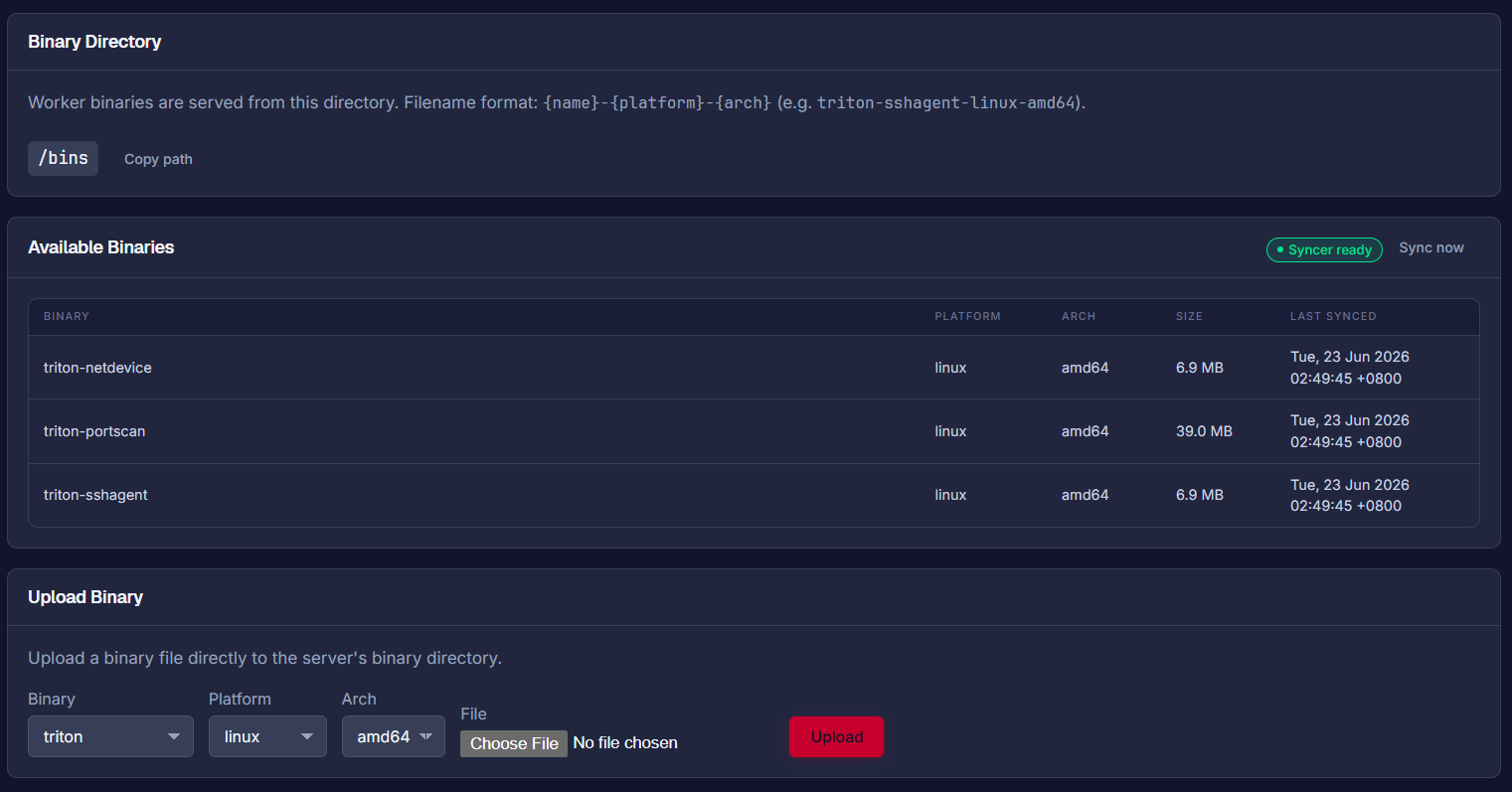

• Binary Directory is /bins with filenames in the form {name}-{platform}-{arch} (for example triton-sshagent-linux-amd64). Copy path copies it.
• Available Binaries lists triton-netdevice · triton-portscan · triton-sshagent and the triton scanner itself each with a platform and architecture and copyable install URL.

Upload Binary lets you manually supply a binary (binary · platform · architecture then choose a file and upload) for air-gapped sites.

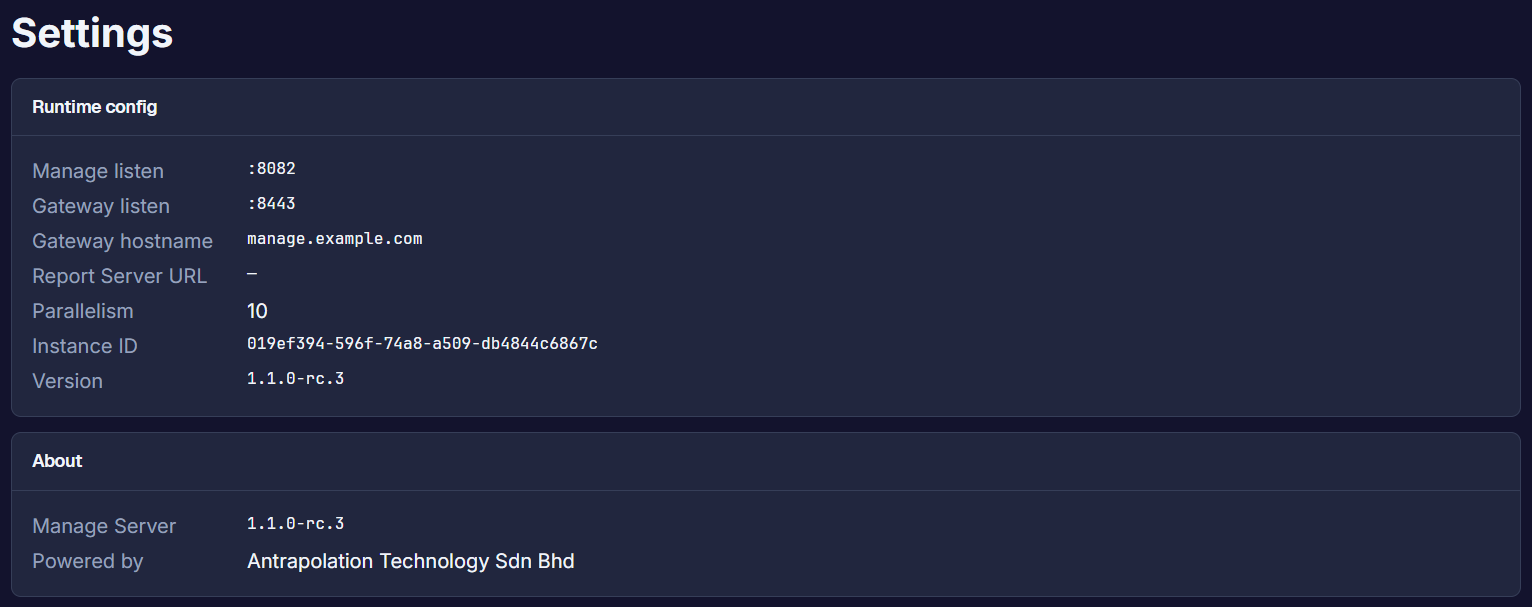

Settings

Sidebar ▸ Admin ▸ Settings. Read-only runtime information.

Workflow: scan your first server

1. Inventory ▸ Credentials ▸ Add Credential: type SSH Key. Paste the key. Set the username. Add a sudo password if you want full-depth scans. Save to Vault.
2. Inventory ▸ Hosts ▸ New host: enter hostname and IP. Pick the credential. Click Test connection and wait for it to confirm. Then Create.
3. Operations ▸ Scan Jobs ▸ New Scan: Next choose Standard. Tick your host. Leave it on Run immediately. Leave limits unlimited. Then Enqueue 2 jobs.
4. Watch the jobs move from queued to running to completed. A deep SSH scan on a small host typically takes about a minute.
5. Reports ▸ Scans: click the scan to read what it found.

Workflow: produce the NACSA Arahan 9 workbook

1. Fill in Inventory ▸ Applications with your business systems and their owners.
2. Set dates in Planning ▸ Phases (use Fill with template) and figures in Planning ▸ Budget.
3. Scan every in-scope host (the workflow above) and tag them pqc-scope.

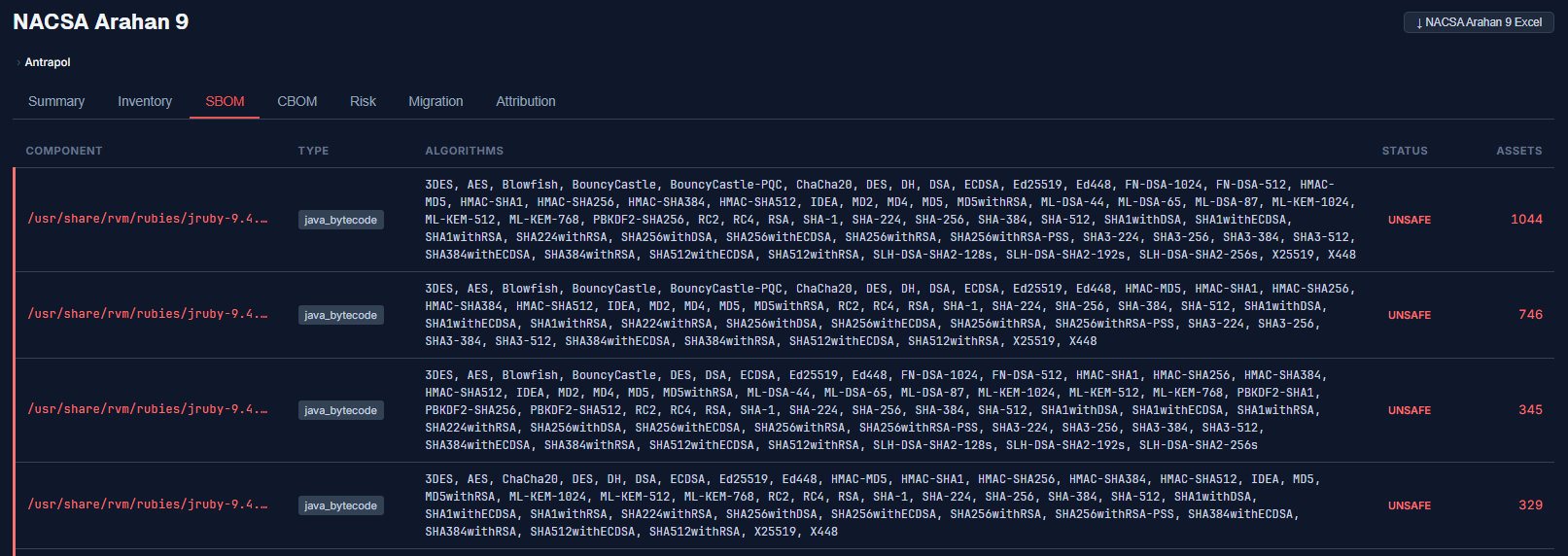

4. Reports ▸ NACSA Arahan 9: review Summary · Inventory · SBOM · CBOM · Risk · Migration and Attribution.
5. Click ↓ NACSA Arahan 9 Excel.

Workflow: onboard a host where SSH is blocked

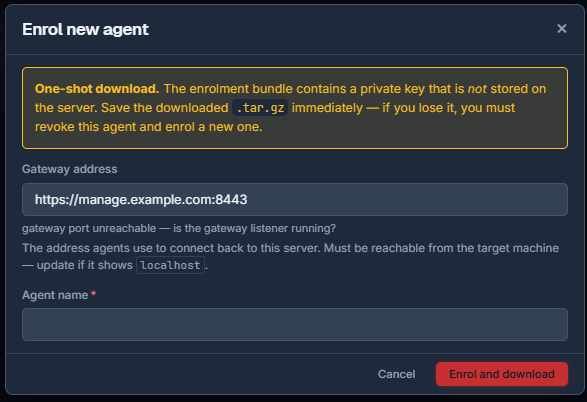

1. Inventory ▸ Hosts ▸ Agents ▸ Enrol agent: confirm the gateway address is reachable from the target then Enrol and download. Save the .tar.gz bundle.
2. Copy the bundle to the target and run the one-line installer from the guide modal. It needs sudo or Administrator rights.
3. The agent appears on the Agents tab. Scan it exactly like any other host.

Reference: status and action and job types

Reference: Risk Matrix

Sidebar ▸ Reference ▸ Risk Matrix. Configures the 5x5 Impact by Likelihood grid used to score every algorithm's risk in NACSA Arahan 9 reports. A finding's score is Impact times Likelihood from 1 to 25 and the band that score lands in sets its colour and label everywhere in MCert.

Likelihood scale (1 to 5): how probable the risk is:

Impact scale (1 to 5): how severe the consequence is:

Reference: Risk Register

Sidebar ▸ Reference ▸ Risk Register. Configures the Risk Categories and Root Causes used when NACSA Arahan 9 risk assessments are generated. Categories group findings by the part of the system at fault. Root Causes explain why the risk exists and uniquely carry ready-made mitigation steps.

Two examples of a Root Cause with its mitigation steps:

Reference: Scoring Config

Sidebar ▸ Reference ▸ Scoring Config. Sets the Impact and Likelihood values MCert auto-fills for every PQC Status by Risk Category combination so a risk score never has to be entered by hand. Score is Impact times Likelihood using the scale above and it feeds the 4_RiskAssessment sheet of the exported Arahan 9 workbook (columns Impak and Kemungkinan).

Reference: Crypto Map

Sidebar ▸ Reference ▸ Crypto Map. A read-only registry of every algorithm and protocol MCert recognises pulled from the scanning engine itself. You cannot edit it here. It exists so you can look up what a Category or Primitive or Function label in a scan result actually means. In effect it is the full list of what MCert supports.

Protocols map to the algorithm suite they typically negotiate. A finding of "TLS 1.0" traces straight back to the weak algorithms that made it UNSAFE:

Troubleshooting

This guide is produced from a live MCert installation and a real Standard-profile scan of a Linux host. Questions this guide does not answer are usually fastest solved by a demo request so we can walk your specific environment together.
